Digoxigenin; Internal Modification

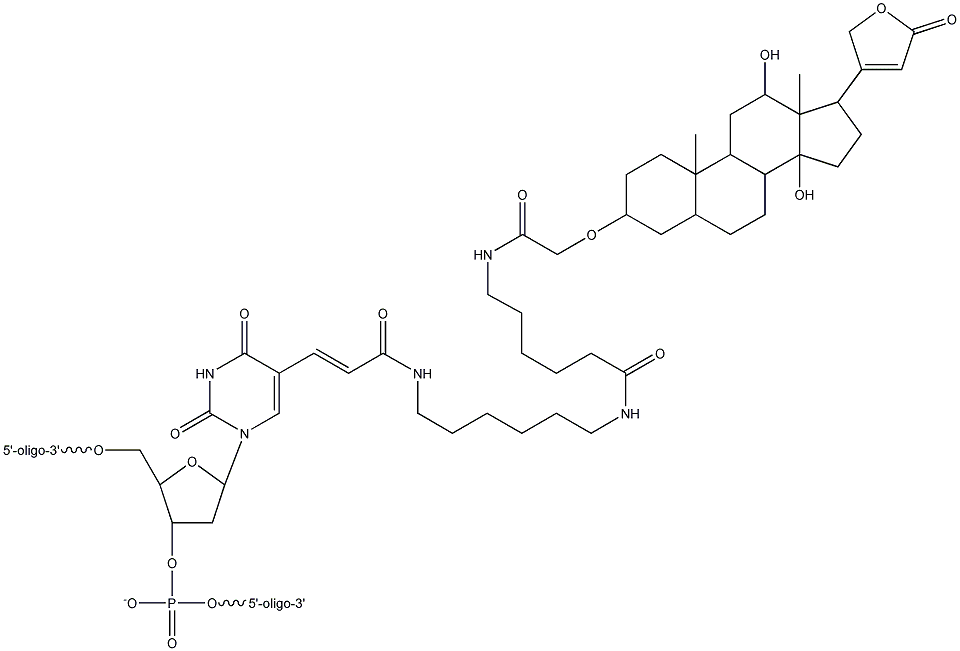

The I-Dig modification incorporates a digoxigenin internally or at the 5' terminus of an oligonucleotide. Digoxigenin is a steroid isolated from the digitalis plant used as a label in a variety of fluorescent, chemiluminescent, and colorimetric assays. As these plants are the only natural source of digoxigenin, the anti-DIG antibody binds with high specificity within a biological matrix. This hapten is conjugated to a modified thymidine which may participate in hybridization.

Properties:

Formula:
C49H71N5O16P
Molecular Weight:
1017.08
Absorption Maximum (Lambda Max):
0
Extinction Coefficient at Lambda max:
0
Extinction Coefficient at 260 nm:
8400
Fluorescence Maximum:
8400

Product usage:

The mass this product adds after conjugation and work-up (the additional mass seen by mass spectrometry) is:
1002.09

Storage and handling:

Digoxigenin; Internal Modification

Properties:

Formula:

C49H71N5O16P

Molecular Weight:

1017.08

Absorption Maximum (Lambda Max):

Extinction Coefficient at Lambda max:

Extinction Coefficient at 260 nm:

8400

Fluorescence Maximum:

8400

Product usage:

The mass this product adds after conjugation and work-up (the additional mass seen by mass spectrometry) is:

1002.09

Storage and handling:
