New arrival

3'-Docosanamido C7 CPG Column

3'-Docosanamido C7 CPG Column

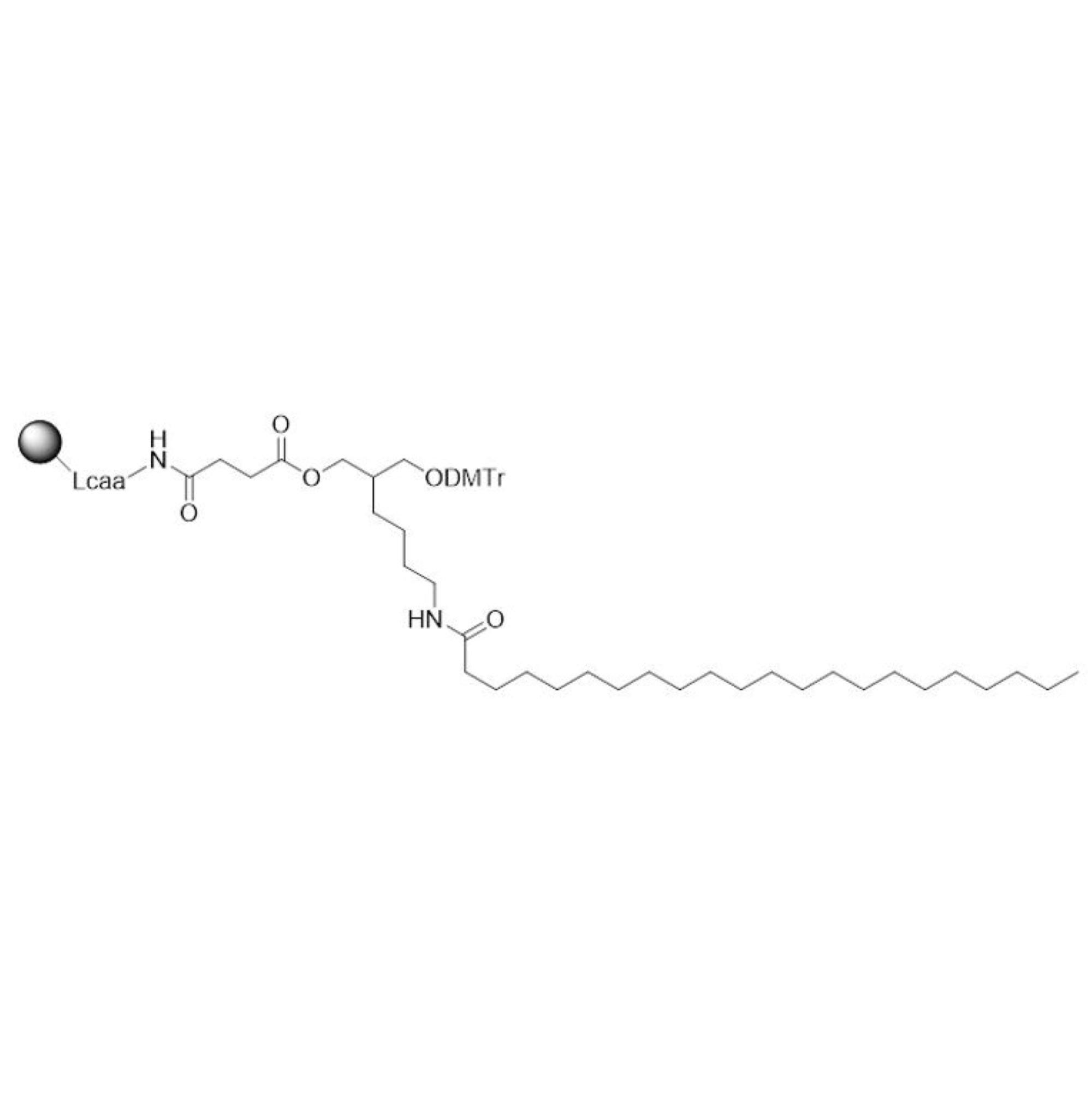

CPG used to add a lipophilic docosanoate chain to the 3' end of an oligonucleotide.

Key features

Show Hide

- Modification to enhance cell delivery.
- CPG has long-chain alkylamino succinyl linker.
- C7 spacer alleviates steric effects that may be caused by the large size of the docosanoic acid.
- 500 Å CPG suitable for high yield applications such as therapeutic oligos (≤ 30mers).

Option 1: Select a Pore Size
Option 2: Select a Column Type
Option 3: Select a Scale
TBD
Add to basket to request a quote

Product information

Oligonucleotide therapeutics have the potential to treat a myriad of different diseases, however, their efficient delivery to targeted cells and organs remains extremely challenging. Their high molecular size and anionic backbone hinder their cellular uptake. In addition, unmodified oligonucleotides are prone to endonucleases degradation, rapid elimination from the systemic circulation, and can trigger an immune response. Various delivery technologies have been developed to improve oligonucleotides cell delivery, including viral and non-viral carriers, and direct conjugation of oligonucleotides to ligand moieties, such as lipids. 

While the conjugation of N-acetylgalactosamine (GalNAc) residues has proven to be a clinically validated way of delivering therapeutic oligonucleotides to the liver, extrahepatic tissues delivery remains challenging. The conjugation of lipophilic moieties, such as cholesterol and fatty acids, has been shown to support the delivery of therapeutic oligonucleotides to non-liver tissues. 

 The conjugation of docosanoic acid (DCA) to oligonucleotides represents one of the earliest approaches to improve systemic delivery to cardiac and skeletal muscles and has been shown to induce a robust and prolonged gene silencing activity in these extrahepatic tissues, without causing any toxicities1. Our 3'-Docosanamino C7 CPG (LK2494) allows you to easily conjugate a DCA to the 3'-end of your oligonucleotides.



1 Ref.: Biscans, A., Caiazzi, J., McHugh, N., Hariharan, V. N., Manish Muhuri, & Khvorova, A. (2021) Docosanoic acid conjugation to siRNA enables functional and safe delivery to skeletal and cardiac muscles. Molecular Therapy, 29(4), 1382–1394. https://doi.org/10.1016/j.ymthe.2020.12.023

Synthesizer
Column
Type/Description
Notes
MerMade 6,12

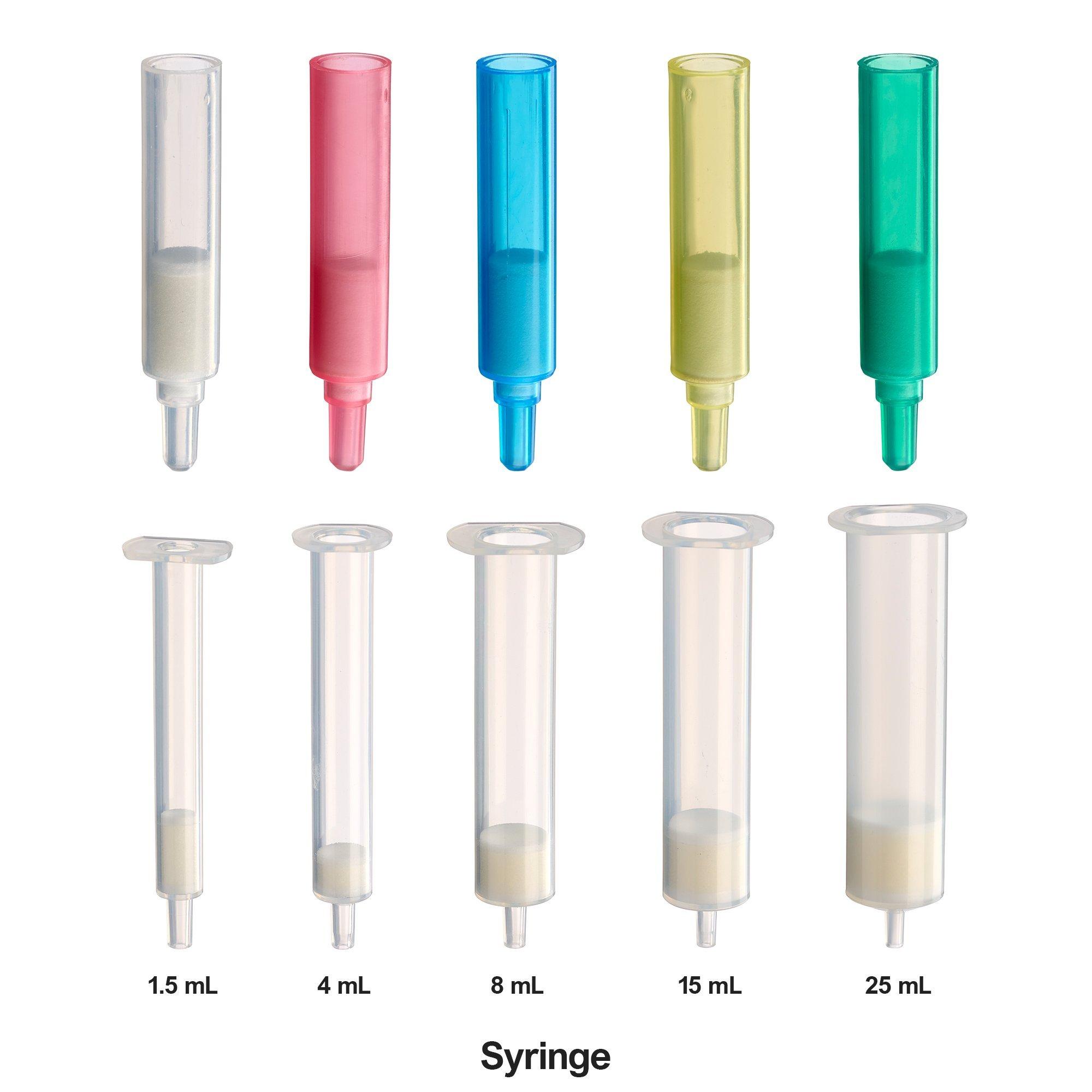

MerMade, syringe (all scales)
Pipette type column

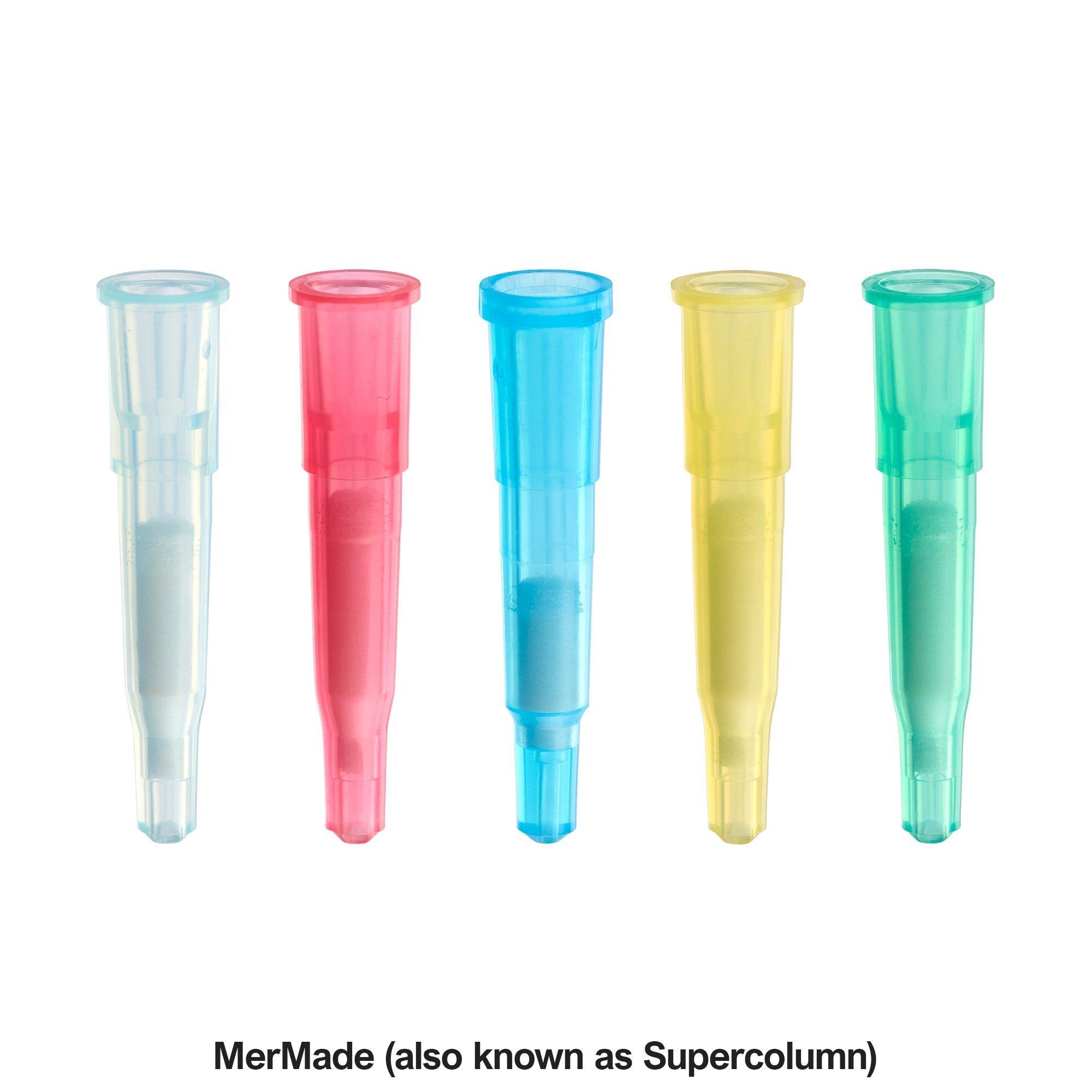

A MerMade column is also known as a Supercolumn
MerMade 4, 48X, 96E, 192E, 192X
MerMade, Syringe (up to 1.3 mL)
Pipette type column
A MerMade column is also known as a Supercolumn
ABI 384 / 394

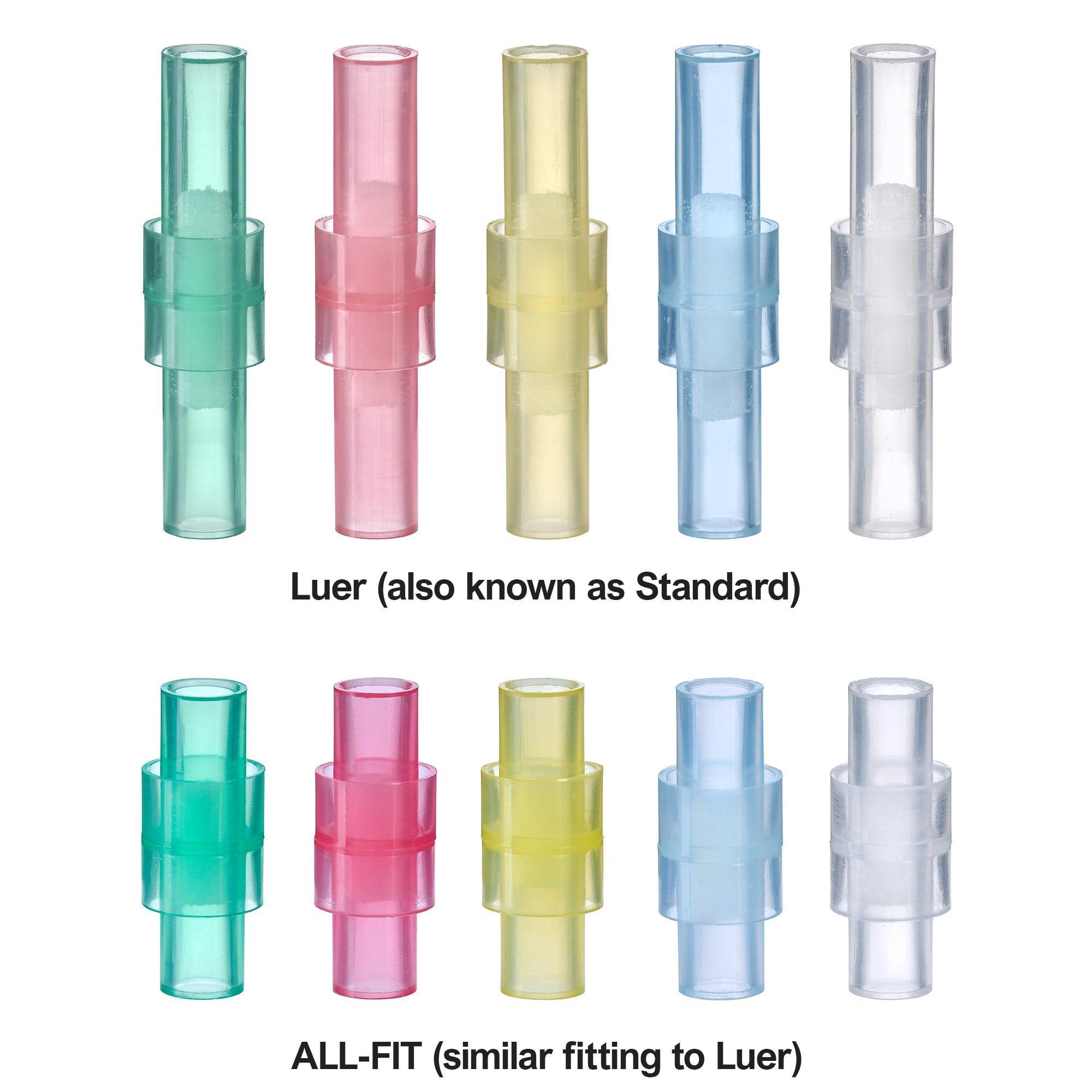

Luer
Barrel column with luer fitting at either end
Also known as ALL-FIT or Standard
Expedite 8909
Luer
Barrel column with luer fitting at either end
Also known as ALL-FIT or Standard
ABI3900
MerMade
Pipette type column
A MerMade column is also known as a Supercolumn
K&A H4, H8, H8SE, H2, H32, H64
Luer
Barrel column with luer fitting at either end
Also known as ALL-FIT or Standard
K&A S4CL/S8CL
Luer
  Barrel column with luer fitting at either end
 Also known as Standard. For this instrument, we recommend the Luer (Standard) column as the ALL-FIT columns have a wider barrel.
Dr Oligo 48
MerMade
Pipette type column
A MerMade column is also known as a Supercolumn
 Dr Oligo 192XLc, 768XLc just plates
 MerMade, Syringe (up to 1.3 mL)
Pipette type column
A MerMade column is also known as a Supercolumn
 OligoMaker X12, 48, 192, X192, X96
MerMade, Syringe (up to 1.3 mL)
Pipette type column
A MerMade column is also known as a Supercolumn

Typical protocol for use on a 1µmol scale:

30s coupling time using standard reagents (Activator: 0.25M ETT/MeCN; Cap A: THF/Lutidine/Acetic Anhydride; Cap B: 10% MeIm/THF; Oxidizer: 0.02M Iodine in THF/Pyridine/water; Deblock: 3% TCA/DCM). Cleave and deprotect using AMA with 20% EtOH at RT for 2h, desalted with G25.
