Halogenated nucleosides are versatile reagents in oligo applications. We provide a wide range of halogenated nucleoside phosphoramidites and CPG supports.
Photocross-linking is a useful technique for the partial definition of the nucleic acid-protein interface of nucleoprotein complexes.(1) Photoactive bases may also be used to probe the crystal structure of the protein-DNA complexes.(2) Photoactive analogues of dC (5-Iodo- and 5-Bromo-dC), and dT analogues (5-Iodo- and 5-Bromo-dU) are available.
8-Br-dA(3) and 8-Br-dG phosphoramidites have been proposed to complete the set of the four photoactive bases required to examine base to amino acid contact pairs, although work in this regard has been limited. 8-Br-dG is also useful in promoting the formation of Z-form DNA structures and for locating subtle differences in DNA polymerases and repair enzymes.(4)
The three-dimensional structure of DNA can be probed by x-ray crystallography using several halogenated nucleoside phosphoramidites, including 5-Br-U and 5-I-U.(5) In addition, antibodies exist which are specific for Br-dU so that oligonucleotides containing Br-dU can be used as probes.

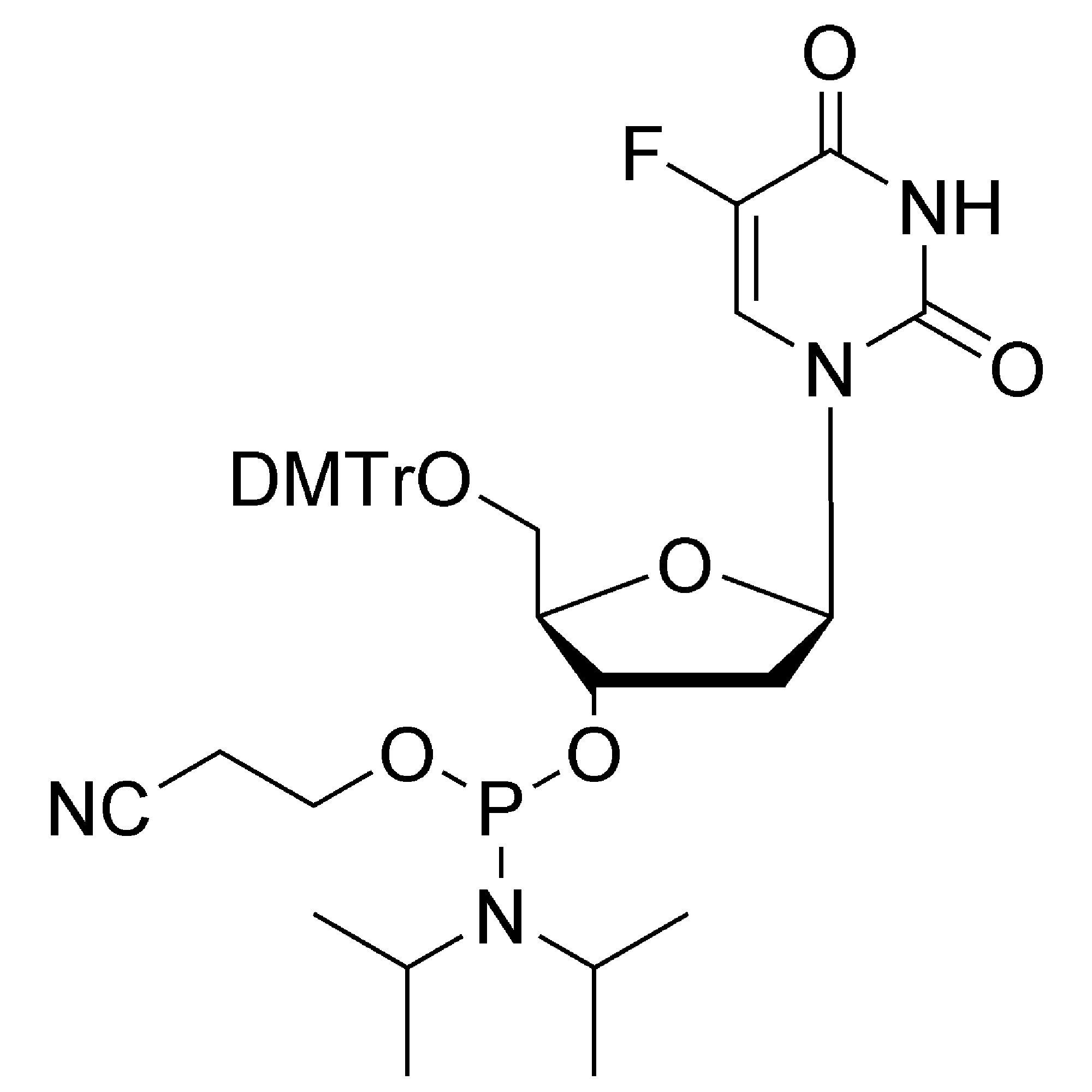

5-F-dU is a base analogue that has the potential to bind to A and G. It does not destabilise duplex formation, and is an alternative to using mixed bases A/G for degeneracy.
Ref:
| LK2009 | 5-I-dC-CE Phosphoramidite |
| LK2010 | 5-F-dU-CE Phosphoramidite |
| LK2011 | 5-Br-dC-CE Phosphoramidite |
| LK2012 | 5-Br-dU-CE Phosphoramidite |
| LK2014 | 5-I-dU-CE Phosphoramidite |
| LK2054 | 8-Br-dA-CE Phosphoramidite |
| LK2055 | 8-Br-dG-CE Phosphoramidite |
| LK2325 | 5-Br-dU SynBase™ CPG 1000/110 |
Dilution volumes (in ml) are for 0.1M solutions in dry acetonitrile (LK4050). Adjust accordingly for other concentrations. For µmol pack sizes, products should be diluted as 100µmol/ml to achieve 0.1M, regardless of molecular weight.
Item |
Mol. Formula |
Mol. Wt. |
Unit Wt. |
250mg |
500mg |
1g |
| LK2009 | C46H51N5O8PI | 959.83 | 415.08 | 2.60 | 5.21 | 10.42 |
| LK2010 | C39H46N4O8PF | 748.79 | 308.16 | 3.34 | 6.68 | 13.35 |
| LK2011 | C46H51N5O8PBr | 912.82 | 368.08 | 2.74 | 5.48 | 10.96 |
| LK2012 | C39H46N4O8PBr | 809.69 | 369.07 | 3.09 | 6.18 | 12.35 |
| LK2014 | C39H46N4O8PI | 856.69 | 416.07 | 2.92 | 5.84 | 11.67 |
| LK2054 | C43H52N8O6PBr | 887.81 | 392.11 | 2.82 | 5.63 | 11.26 |
| LK2055 | C43H52N8O7PBr | 903.90 | 408.10 | 2.77 | 5.53 | 11.06 |
| LK2325 | - | - | 369.07 | - | - | - |
No changes are required from the standard method recommended by the synthesiser manufacturer. Coupling is as per standard nucleoside amidites and supports.
To avoid ammonolysis at the halogenated site, a mild deprotection step is recommended using ammonium hydroxide for 24h at room temperature, or AMA for 2h at room temperature provided dmf-dG and Ac-dC are used. Bz-protected C amidites are not compatible with AMA deprotection.
Store the solid phosphoramidites refrigerated, dry, at a maximum of 2-8°C. Store the monomers in solution for no longer than 24h, although 8-Br-dG (LK2055) and 5-Br-dU (LK2012) are stable for 2-3 days. Halogenated nucleosides tend to be photosensitive therefore retain the amidites in amber vials.
